4K Industrial DLP 3d Printer Big Print Size 250x140x270mm for Dental Models / Prototyping Models
- Overview
- Inquiry
- Related Products
Description：Prism M4S is an industrial-grade large-format DLP-3D printer with large molding space, high precision, fast printing speed, and good surface quality. As a 3D Plus high promotion-pushing model, it has become the best productivity tool with both large molding space and high printing speed. High stability and continuous working ability are recognized by professional customers.
Prism M4S uses a professional-grade Ultra-high resolution projection optical engine with a resolution of 4K(3840X2160). The high uniformity of light ensures the stable molding of each position in every molding layer. With high stability LED UV light source (its service life can be more than 20,000 hours), it ensures the reliable molding during the printing process.
Specifications：
| Model | Prism M4S |
| Technics | Advanced DLP Technology |
| Machine Size | 600 x 400 x 1600 mm |
| Building Size | 140x80x270mm / 192x108x270mm / 250x140x270mm |
| Printing Resolution | Horizontal pixel 37um / 50um / 70um, vertical 20um |
| Physical Resolution | 3840x2160 Pixels |
| Layer thickness | 0.02-0.1mm |
| Building speed | 10-40mm/h |
| Light Source | Industrial UV LED, lifetime 10000 hours |
| After-processing | UV solidify |
| Resin tank | FEP/ NFEP / ACF release film, Aluminum Alloy Frame |
| Software | PRISM MASTER V2.0 and Chitubox |
| Supports | Automatic and manual support generation |
| Input file | STL / OBJ / SLC |
| Touch Screen | Yes, 7 inches Touch Screen Monitor |
| Connectivity | USB driver, multi-printers control |
| Offline print capability | Yes |
| Platform leveling | Leveling is finished before shipping |
| Resins | 3KU resin, all brand 405nm resin compatible |
| System requirement | Windows, Mac |
| Power | Output: DC 12V Input: 100-240V 50-60Hz |
| After-processing | UV solidify |
| Regular Warranty | one year |
Quick Detail:
1. Industrial DLP 3d Printer
2. Print Models for Jewelry with Red Wax Mold Resin
3. Max Print size: 250x140x270mm
Applications:

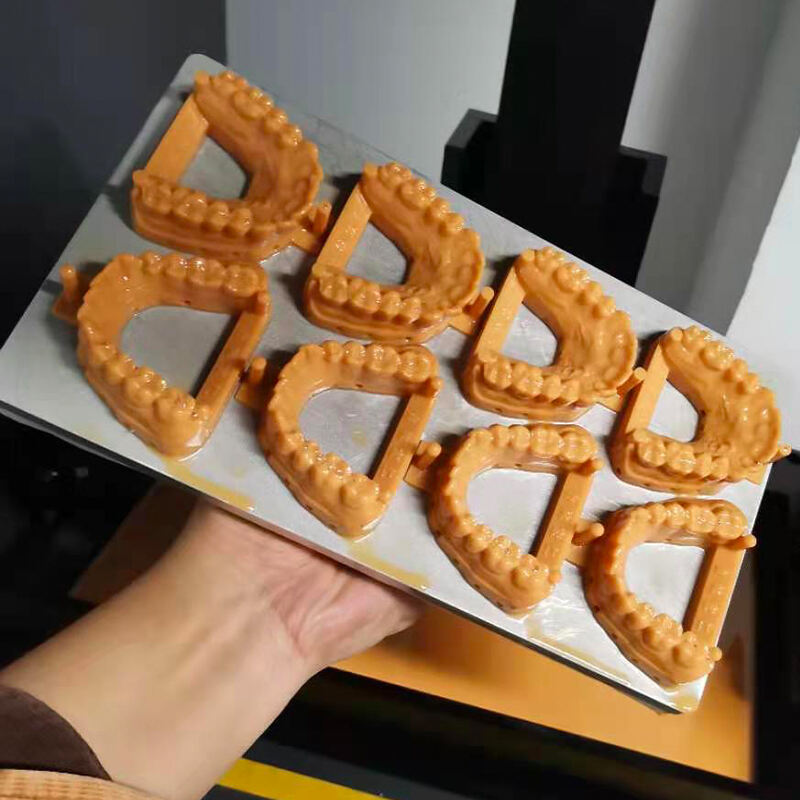

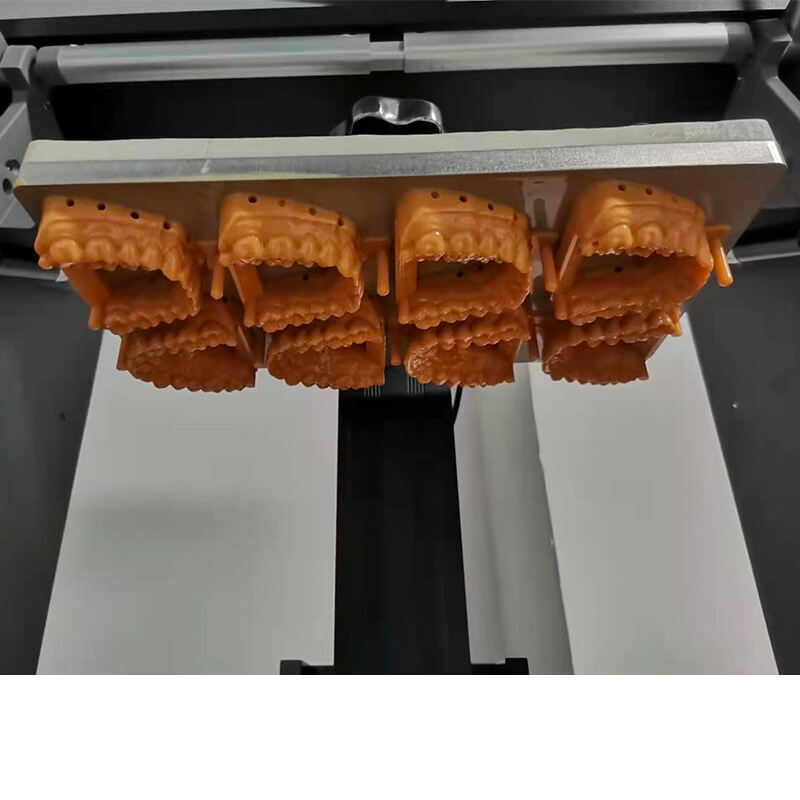

Mass Production for for Dental Models / Prototyping Models
Competitive Advantage:
1、Software and touch screen support the resin locking function.
2、Time lock and offline unlocking can be realized without Ukey.
3、Directly print SLC files, support slicing files like Jewel CAD, Magics, Rhino etc.
4、Z-axis imported high-precisiondouble track guidemodules
5、Automatic support function, set freely the parameters of thickness and angles of the support.
6. Compared with LCD printers, without the risk of supports broke LCD screen.
